사양 정보
-
Measured variables
Visibility (K-value), NO, NO2, NOx, CO, Temperature
-
Measuring range
K-value: 0 ... 15 km⁻¹ / 0 ... 200 km⁻¹
NO: 0 ... 20 ppm / 0 ... 45 ppm
NO2: 0 ... 1 ppm / 0 ... 5 ppm
CO: 0 ... 100 ppm / 0 ... 300 ppm
Temperature: -25 ... +55 °C / -25 ... +75 °C -
Conformities
ASTRA "Guideline - Ventilation of Road Tunnels" (2008)
RABT 2006
RVS 09.02.22
적용 분야

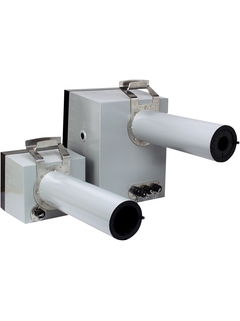

The VICOTEC320 measures very small concentrations of NO2 and NO as well as the visibility and temperature in road tunnels quickly and simultaneously. And all this using industry-proven components – without test gases for zero and reference point. An automated, cyclic adjustment of zero and reference point ensures exact values. The rugged housing even withstands thorough tunnel washing operations without any impairments.
Ventilation control and filter monitoring in tunnels
Monitoring of air quality in road tunnels
Device properties:
Very low detection limits for NO and NO2
Automatic function monitoring and self-adjustment
Very rugged design in stainless steel
Automatic beam alignment between sender/receiver unit and reflector
장점
Energy and cost savings for ventilation control due to very low zero offset and accurate measurement
Low operational costs because no air aspiration of ambient air and no test gases are required
Low maintenance requirements due to long maintenance interval (approx. 1 year)
| FLEX 선택 | 기술적 우수성 | 단순성 |
|---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
Loading alternative products
관심이 있을 수 있는 게시물
-
-
역량 브로셔(CP)
Traffic and Tunnel Safety Solutions
An overview brochure about traffic and tunnel sensor, their
development during the last 60 years, the main applications in front
and within a tunnel as well as the measuring devices at a glance언어:
영어
버전:
01/01/2025
파일 크기:
4.2 MB
파일 이름:
8029977_CP_Traffic_Sensors_en_V2-0_2025.01_EHS.pdf
-
-
-
역량 브로셔(CP)
Emission Monitoring Solutions – broad instrument portfolio and longstanding experience
An overview brochure about emission monitoring, their measuring
principles and technologies, global requirements and services, a
selection guide and the measuring devices at a glance언어:
영어
버전:
01/01/2025
파일 크기:
4.5 MB
파일 이름:
8029975_CP_Emission_Monitoring_Solutions_en_V3-0_2025.01_EHS.pdf
-
-
-
혁신(IN)
VICOTEC320 – Air quality tunnel sensors to control ventilation in road tunnels
The VICOTEC320 measures very small concentrations of NO2 and NO as well as the visibility and temperature in road tunnels
simultaneously and fast.언어:
영어
버전:
01/01/2025
파일 크기:
2.6 MB
파일 이름:
8030070_IN_VICOTEC320_en_V4-0_2025.01_EHS.pdf
-
-
-
검증 DTM
VICOTEC320 SDD file
SOPAS device description file for VICOTEC320
언어:
Language neutral
버전:
19/10/2015
파일 크기:
382 KB
파일 이름:
VICOTEC320 SDD file
-
