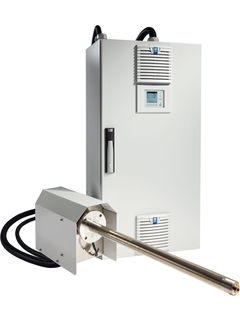

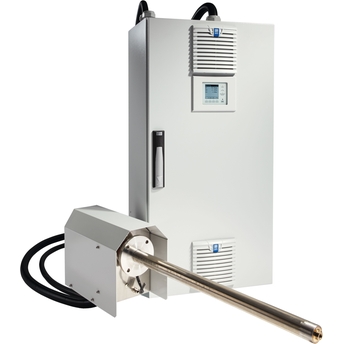

product picture of the emission monitoring solution MARSIC300

MARSIC300
emission monitoring solution

Safely on the right course

IMAR300

사양 정보

Measured variables

CO2, SO2, NO, NO2, CO, NH3, H2O, CH4
Ambient temperature range

0 °C ... +50 °C
Type approved up to 45 °C
Conformities

MARPOL Annex VI and NTC 2008 – MEPC.177(58)
Guidelines for exhaust gas cleaning systems – MEPC.340(77)
Guidelines for SCR reduction systems – MEPC.198(62)
DNV Rules for Type Approvals (2012)
IACS E10 and Rules of major classification societies

모든 사양 보기

적용 분야

The MARSIC300 ship emissions measuring device is a customized solution for reliably measuring emissions on ships according to MARPOL Annex VI and IMO MEPC. The MARSIC300 is type-approved for this application by well-known classification organizations. The MARSIC300 measures both SOx and CO2 upstream and downstream of the scrubbers, and NOx upstream and downstream of SCR plants. The measuring device impresses with extremely low maintenance costs and modules that are easy to replace.

Reliable emission monitoring on ships
Accurate DeNOx and DeSOx measurements for ship engines
Cost-efficient process monitoring of the scrubber and catalytic converters

Device properties:

Rugged design and high level of measurement accuracy
Type-approved by well-known classification organizations in accordance with MARPOL Annex VI and IMO MEPC
Measuring ranges adapted to low and high concentrations of SO2 and NOx
Up to 8 measuring components at the same time: SO2, CO2, CO, NO, NO2, NH3, H2O, CH4

장점

Modules that are easy to replace during servicing
Low costs thanks to minimal maintenance requirements
Extensive network for service support
Quick access to expert support with remote maintenance
No expensive test gases thanks to its certified internal drift correction
Also equipped for new requirements thanks to its rugged design and high level of measurement accuracy

동영상

MARSIC300: Maritime emission monitoring
