사양 정보
-
Measured variables
Corg
-
Ambient temperature range
+5 °C ... +40 °C
-
Process pressure
≤ +230 °C
적용 분야
The GMS800 FIDOR extractive gas analyzer is ideally suited for emission measurements according to regulatory requirements. Based on the proven flame ionization detection principle, the GMS800 FIDOR measures total hydrocarbon concentrations in gases at both trace levels and high concentration levels. The different housinga makes stand-alone operation and integration into existing systems such as the MCS200HW multi-component analyzer very easy.
Monitoring of hydrocarbon emissions in raw gas and clean gas
Emissions measurement in thermal, catalytic, and biological exhaust gas cleaning systems
Laboratory applications
Device properties:

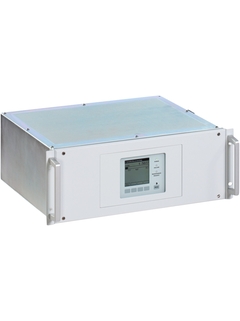

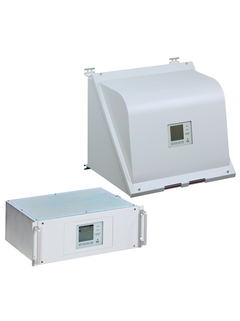

Standard 19” enclosure for easy integration into all industry-typical systems
Space-saving wall housing (stand-alone)
Nearly maintenance free ejector pump
Automatic regulation and compensation of process pressure fluctuations
High degree of linearity (≤ 2 %) for very low and high measuring ranges
장점
Very high availability
Convenient remote diagnosis and operation via Ethernet using SOPAS-ET software
Replacement of complete assemblies and modules makes repairs easy
Hydrogen as fuel gas, expensive helium is not required
Low operating costs, e.g., due to low hydrogen consumption
The GMS811 FIDOR version, on which the BCU control unit can be separated from the analyzer unit, supports convenient control and monitoring from a central control room
| FLEX 선택 | 기술적 우수성 | 단순성 |
|---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
