사양 정보
-
Measured variables
Transmittance, opacity, relative opacity, extinction, dust concentration
-
Process temperature
–40 °C ... +600 °C
-
Measuring range
Transmittance :100 ... 50 % / 100 ... 0 %
Opacity: 0 ... + 50 % / 0 ... 100 %
Relative opacity: 0 ... + 50 % / 0 ... 100 %
Extinction: 0 ... + 0.3 / 0 ... 1
Dust concentration: 0 ... + 200 mg/m³ / 0 ... 10,000 mg/m³
The measurement depends on measuring distance and dust properties
적용 분야

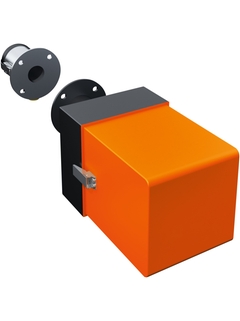

The DUSTHUNTER T50 is an economic measuring device for dust at medium to high concentrations in gases above the dew point. Transmittance is the basic measuring value. Opacity and extinction can be calculated and displayed as well as the dust concentration after gravimetric calibration.
Emission monitoring in heating systems
Monitoring of dust concentrations upstream of filter systems
Dust concentration measurements in cement plant
Device properties:
For medium to high dust concentrations
Automated thorough check of zero and reference point
For low to medium measuring distances
장점
Easyinstallation, commissioning, and operation
Measurement not dependent on gas velocity, humidity, or particle load
Self-monitoring for low maintenance
| FLEX 선택 | 기술적 우수성 | 단순성 |
|---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
