사양 정보
-
Measured variables
Scattered light intensity, dust concentration (after gravimetric comparison measurement)
-
Process temperature
40 °C ... +220 °C
-
Device version
Ex-3K
Ex-2K
적용 분야

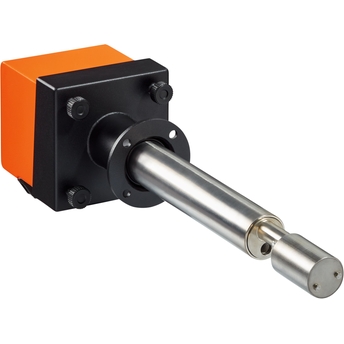

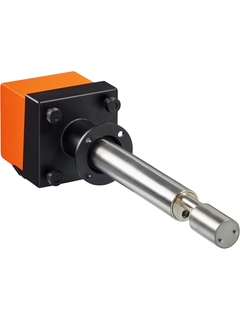

The DUSTHUNTER SP100 is a type-approved measuring device with probe for very low to medium dust concentrations. Installation from one side makes it ideal for thick-walled or double-walled ducts. The measurement is based on the forward scattering of light. An automated check of the zero and reference point as well as a contamination check are on board in the device.
Emissions monitoring at power plants and waste incineration plants
Monitoring of filter systems
Measurements in exhaust gas or exhaust ventilation ducts
Device properties:
Installation from one side
For very low to medium dust concentrations
Automated check of zero and reference point
Hastelloy measuring probe available for corrosive gases
For small to medium duct diameters
Device version for explosive zone 2/22 or 1/21
장점
Particularly well-suited for thick and dual-wall channels
Tested for suitability according to EN 15267
Low-maintenance thanks to self-monitoring and contamination monitoring
Quick installation since no alignment is required
| FLEX 선택 | 기술적 우수성 | 단순성 |
|---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
