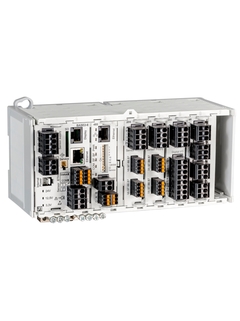

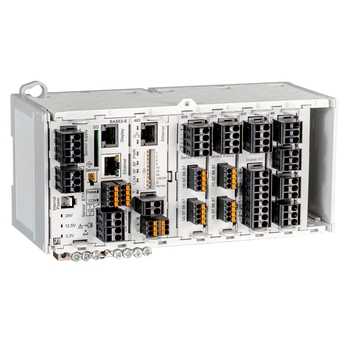

Liquiline CM444R is a state-of-the-art transmitter for pH, ORP, conductivity, oxygen, chlorine, turbidity, sludge level, SAC, nitrate and many other parameters.
Liquiline transmitters with Heartbeat Technology offer status-oriented maintenance and easy verification of the measuring point and help you to carry out optimization measures.
Liquiline CM444R is a state-of-the-art transmitter for pH, ORP, conductivity, oxygen, chlorine, turbidity, sludge level, SAC, nitrate and many other parameters.
사양 정보
Input
1 to 4x Memosens digital input 2x 0/4 to 20mA Input optional 2 to 4x Digital input optional
Output / communication
2 to 8x 0/4 to 20 mA current outputs, alarmrelay, 4x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet
Liquiline CM444R allows you to connect up to 4 Memosens sensors of your choice from over 12 measurement parameters. With its compact design, it fits into any cabinet and can be expanded at any time with inputs, outputs, controllers, math modules, and sensor channels. The transmitter belongs to the Liquiline platform with standardized system integration, operation, and spare parts. Heartbeat Technology helps you find the ideal balance between measurement point availability and maintenance costs.
Liquiline CM444R is suitable for all industries and their utilities, such as:
Food & Beverages
Life Sciences
Power & Energy
Water & Wastewater
Chemicals
Marine
It features the following communication protocols and interfaces:
0/4...20 mA
HART
PROFIBUS DP
Modbus RS485/RTU
Modbus TCP
EtherNet/IP
PROFINET
Webserver
The transmitter can be extended with a module whose explosion protection approvals, such as IECEx, ATEX, and CSA, allow the connection of sensors installed in hazardous areas.
장점
Saves space, saves money: Small footprint, 4 channels in one device, expandable at any time, saves space in cabinets – perfect for skids.
High-speed installation: No cut-out in cabinet door, one-click DIN-rail mounting, minimized wiring.
Simple and safe commissioning: Saving configuration on SD card enables fast set-up on duplicate installations.
Easy to operate and service: Intuitive user interface, hot plug & play with pre-calibrated Memosens sensors, universal components fit all parameters.
Process control from a distance: Integrated web server that allows the operator to remotely view diagnostic data, perform configurations, or access device parameters in any web browser - even via Smartphone.
Higher availability, lower costs: Heartbeat Technology enables status-oriented maintenance and easy verification of the entire measuring point and helps to carry out optimization measures.
Drive connectivity:Liquiline Edge Module CYY7 transfers process data to Netilion, independently of the fieldbus. This allows remote overview and the use of IIoT services. It’s available in new products or as upgrade to installed Liquiline platforms.
동영상
Memosens 2.0: 최첨단 센서 기술
최첨단 디지털 센서 기술 Memosens 2.0으로 프로세스의 안전성을 향상시키는 동시에 보다 편리성을 증대시키십시오.
Heartbeat Technology 기반 스마트 계측 시스템
진단, 검증 및 모니터링 기능으로 구성된 하트비트 기술은 안정적이고 심층적인 센서 및 공정 인사이트를 제공함으로써 스마트 계기를 더욱 스마트하게 활용할 수 있게 해줍니다.
AVR Waste in Botlek, Rotterdam, processes up to 1.7 million tons of residual waste per year. Discover how they optimized their pH measurement thanks to Endress+Hauser
Discover how Heineken meets all regulations to protect the brazilian environment with the Viomax CAS51D digital nitrate or SAC sensor from Endress+Hauser.
Holiferm produces sustainable biosurfactants using a patented gravity separation fermentation process. The company was seeking a way to automate the measurement of the critical phase separation step.
A high degree of automation combined with expert craftsmanship ensures highly efficient production of the various device versions. We can tailor your device exactly to your needs.
Modular 4 wire controller Multichannel: 1 to 4 digital channels for Memosens protocol Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity 4 sensors connectable in any combination Functionality modular extendable at any time Plug and play for modules and sensors
Characteristic
Robust plastic housing All non-ex applications
Design
2 to 4x Memosens input, 2 to 8x current output, Alarmrelay, 4x relay, SD card for software update and copy & paste of setup
Material
DIN rail housing: PC-FR Display seal: EPDM
Dimension
220 x 100 x 97 mm 8.66 x 3.94 x 3.82 inch
Process temperature
0 to 55 °C (32 to 130 °F)
Ingress protection
Transmitter: IP20 Optional Display: IP66
Input
1 to 4x Memosens digital input 2x 0/4 to 20mA Input optional 2 to 4x Digital input optional
Output / communication
2 to 8x 0/4 to 20 mA current outputs, alarmrelay, 4x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet
Additional certifications
EAC, cCSAus
측정 원리
Sensor ORP / Redox
Application
Modular 4 wire controller Multichannel: 1 to 4 digital channels for Memosens protocol Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity 4 sensors connectable in any combination Functionality modular extendable at any time Plug and play for modules and sensors
Characteristic
Robust plastic housing All non-ex applications
Design
2 to 4x Memosens input, 2 to 8x current output Alarmrelay, 4x relay, SD card for software update and copy & paste of setup
Material
DIN rail housing: PC-FR Display seal: EPDM
Dimension
220 x 100 x 97 mm 8.66 x 3.94 x 3.82 inch
Process temperature
0 to 55 °C (32 to 130 °F)
Ingress protection
Transmitter: IP20 Optional Display: IP66
Input
1 to 4x Memosens digital input 2x 0/4 to 20mA Input optional 2 to 4x Digital input optional
Output / communication
2 to 8x 0/4 to 20 mA current outputs, alarmrelay, 4x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet
Additional certifications
EAC, cCSAus
측정 원리
Conductive
Application
Modular 4 wire controller Multichannel: 1 to 4 digital channels for Memosens protocol Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity 4 sensors connectable in any combination Functionality modular extendable at any time Plug and play for modules and sensors
Characteristic
Robust plastic housing All non-ex applications
Design
2 to 4x Memosens input, 2 to 8x current output Alarmrelay, 4x relay, SD card for software update and copy & paste of setup
Material
DIN rail housing: PC-FR Display seal: EPDM
Dimension
220 x 100 x 97 mm 8.66 x 3.94 x 3.82 inch
Process temperature
0 to 55 °C (32 to 130 °F)
Ingress protection
Transmitter: IP20 Optional Display: IP66
Input
1 to 4x Memosens digital input 2x 0/4 to 20mA Input optional 2 to 4x Digital input optional
Output / communication
2 to 8x 0/4 to 20 mA current outputs, alarmrelay, 4x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet
Additional certifications
EAC, cCSAus
측정 원리
Amperometric oxygen measurement
Application
Modular 4 wire controller Multichannel: 1 to 4 digital channels for Memosens protocol Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity 4 sensors connectable in any combination Functionality modular extendable at any time Plug and play for modules and sensors
Characteristic
Robust plastic housing All non-ex applications
Design
2 to 4x Memosens input, 2 to 8x current output, Alarmrelay, 4x relay, SD card for software update and copy & paste of setup
Material
DIN rail housing: PC-FR Display seal: EPDM
Dimension
220 x 100 x 97 mm 8.66 x 3.94 x 3.82 inch
Process temperature
0 to 55 °C (32 to 130 °F)
Input
1 to 4x Memosens digital input 2x 0/4 to 20mA Input optional 2 to 4x Digital input optional
Output / communication
2 to 8x 0/4 to 20 mA current outputs, alarmrelay, 4x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet
Additional certifications
EAC, cCSAus
측정 원리
Total chlorine
Application
Modular 4 wire controller Multichannel: 1 to 4 digital channels for Memosens protocol Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity 4 sensors connectable in any combination Functionality modular extendable at any time Plug and play for modules and sensors
Characteristic
Robust plastic housing All non-ex applications
Design
2 to 4x Memosens input, 2 to 8x current output, Alarmrelay, 4x relay, SD card for software update and copy & paste of setup
Material
DIN rail housing: PC-FR Display seal: EPDM
Dimension
220 x 100 x 97 mm 8.66 x 3.94 x 3.82 inch
Process temperature
0 to 55 °C (32 to 130 °F)
Input
1 to 4x Memosens digital input 2x 0/4 to 20mA Input optional 2 to 4x Digital input optional
Output / communication
2 to 8x 0/4 to 20 mA current outputs, alarmrelay, 4x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet
Additional certifications
EAC, cCSAus
측정 원리
Single beam scattered light
Application
Modular 4 wire controller Multichannel: 1 to 4 digital channels for Memosens protocol Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity 4 sensors connectable in any combination Functionality modular extendable at any time Plug and play for modules and sensors
Characteristic
Robust plastic housing All non-ex applications
Design
2 to 4x Memosens input, 2 to 8x current output, Alarmrelay, 4x relay, SD card for software update and copy & paste of setup
Material
DIN rail housing: PC-FR Display seal: EPDM
Dimension
220 x 100 x 97 mm 8.66 x 3.94 x 3.82 inch
Process temperature
0 to 55 °C (32 to 130 °F)
Ingress protection
Transmitter: IP20 Optional Display: IP66
Input
1 to 4x Memosens digital input 2x 0/4 to 20mA Input optional 2 to 4x Digital input optional
Output / communication
2 to 8x 0/4 to 20 mA current outputs, alarmrelay, 4x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet
Additional certifications
EAC, cCSAus
측정 원리
Ultrasonic sensor
Application
Modular 4 wire controller Multichannel: 1 to 4 digital channels for Memosens protocol Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity 4 sensors connectable in any combination Functionality modular extendable at any time Plug and play for modules and sensors
Characteristic
Robust plastic housing All non-ex applications
Design
2 to 4x Memosens input, 2 to 8x current output, Alarmrelay, 4x relay, SD card for software update and copy & paste of setup
Material
DIN rail housing: PC-FR Display seal: EPDM
Dimension
220 x 100 x 97 mm 8.66 x 3.94 x 3.82 inch
Process temperature
0 to 55 °C (32 to 130 °F)
Ingress protection
Transmitter: IP20 Optional Display: IP66
Input
1 to 4x Memosens digital input 2x 0/4 to 20mA Input optional 2 to 4x Digital input optional
Output / communication
2 to 8x 0/4 to 20 mA current outputs, alarmrelay, 4x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet
