Liquiline System CA80AL - High-precision process analyzer for aluminum measurement

Aluminum analyzer

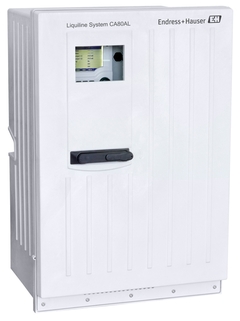

Liquiline System CA80AL

Colorimetric system for drinking water and wastewater monitoring and optimization of process control

CA80AL

비교

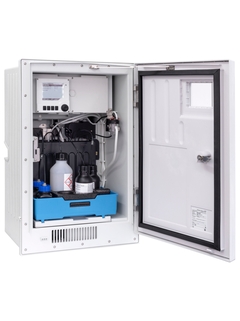

Liquiline System CA80AL aluminum analyzer - open view

Sample collector with level detection for the monitoring of sample transport

사양 정보

Measuring range

15 to 1000 µg/l Al
15 to 1000 µg/l with dilution function to maximum 300 to 20 000 µg/l Al
Process temperature

4 ... 40 °C (39.2 ... 104 °F)
Process pressure

at atmospheric pressure, < 0.2 bar

모든 사양 보기

적용 분야

Liquiline System CA80AL offers precise, regulation-compliant online measurement of aluminum residues in drinking water and wastewater. The analyzer helps you to optimize aluminum dosing in flocculation processes and phosphate removal. It enables plug & play of up to 4 Memosens sensors – minimizing the installation effort. Automatic calibration and cleaning and the low reagent consumption reduce operating costs while advanced diagnostics with remote access ensure process safety.

Liquiline System CA80AL aluminum analyzer supports:

Limit monitoring in drinking water
Optimization of aluminum-based coagulation processes
Phosphate elimination in wastewater treatment plants

장점

The aluminum analyzer uses the pyrocatechol violet method according to DIN ISO 10566, ensuring direct comparability to lab results
Supports predictive maintenance by advanced diagnostics
Reduces operating costs thanks to automatic calibration and cleaning as well as low reagent consumption
Easy upgrade of functionality to a complete measuring station - by adding modules and connecting Memosens sensors.
Comfortable remote access via integrated web server
Seamless integration into process control systems thanks to digital field buses such as Modbus, PROFIBUS, EtherNet/IP

동영상

Aluminum concentration in a liquid can be measured using the colorimetric measuring principle. This video shows what it is about and how this measuring principle works.
