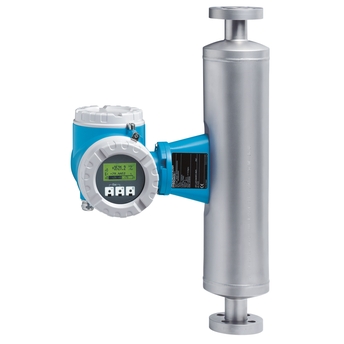

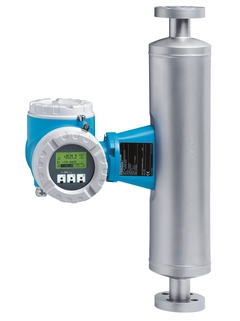

Promass 83I

Coriolis

Combines in‐line viscosity and flow measurement with extended transmitter functionality. Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment.

Energy‐saving – full bore design enables minimal pressure loss. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in/outlet run needs. Straight, easy cleanable single‐tube system. TMB technology.

Quality – software for filling & dosing, density & concentration, advanced diagnostics. Flexible data transfer options – numerous communication types. Automatic recovery of data for servicing. 4‐ line backlit display with touch control. Device in compact or remote version.

DN 8 to 80 (⅜ to 3")

Measuring tube: Titanium grade 9
Connection: Titanium grade 2

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration, viscosity

Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.5 %
Density (liquid): ±0.0005 g/cm³

0 to 180 000 kg/h (0 to 6600 lb/min)

PN 100, Class 600, 63K

–50 to +150 °C (–58 to +302 °F)

Standard: –20 to +60 °C (–4 to +140 °F)
Option: –40 to +60 °C (–40 to +140 °F)

1.4301/1.4307 (304L), corrosion resistant

Powder‐coated die‐cast aluminium
1.4301 (304), sheet
CF3M (316L), cast

IP67, type 4X enclosure. Remote transmitter: IP67, type 4X enclosure

4‐line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible

4 modular outputs:
0‐20 mA (active)/4‐20 mA (active/passive)
Pulse/frequency/switch output (passive)
Relay

2 modular inputs:
Status
0‐20 mA (active)/4‐20 mA (active/passive)

HART, PROFIBUS PA/DP, FOUNDATION Fieldbus, Modbus RS485, EtherNet/IP

DC 16 to 62 V
AC 85 to 260 V (45 to 65 Hz)
AC 20 to 55 V (45 to 65 Hz)

ATEX, IECEx, FM, CSA, NEPSI

3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR, SIL
PED, CRN
3-A

CE, C-tick, EAC marking

Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR

PED, CRN

3.1 material

3-A, EHEDG

Coriolis

Balanced single-tube system, "Fit-and-Forget" installation
Design:
Easy to clean, hygienic, careful handling of the medium
- chemically resistant material

-20...+65°C
(-4...+140°F)

-50...+150°C
(-58...+302°F)

PN 16...100
Cl 150...600
JIS 10...63K

Titan

4...20mA
Pulse/Frequency (10KHz), active/passiveRelays/Status

ATEX
FM
CSA

Coriolis

Combines in‐line viscosity and flow measurement with extended transmitter functionality. Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment.

Energy‐saving – full bore design enables minimal pressure loss. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in/outlet run needs. Straight, easy cleanable single‐tube system. TMB technology.

Quality – software for filling & dosing, density & concentration, advanced diagnostics. Flexible data transfer options – numerous communication types. Automatic recovery of data for servicing. 4‐ line backlit display with touch control. Device in compact or remote version.

DN 8 to 80 (⅜ to 3")

Measuring tube: Titanium grade 9
Connection: Titanium grade 2

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration, viscosity

Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.5 %
Density (liquid): ±0.0005 g/cm³

0 to 180 000 kg/h (0 to 6600 lb/min)

PN 100, Class 600, 63K

–50 to +150 °C (–58 to +302 °F)

Standard: –20 to +60 °C (–4 to +140 °F)
Option: –40 to +60 °C (–40 to +140 °F)

1.4301/1.4307 (304L), corrosion resistant

Powder‐coated die‐cast aluminium
1.4301 (304), sheet
CF3M (316L), cast

IP67, type 4X enclosure. Remote transmitter: IP67, type 4X enclosure

4‐line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible

4 modular outputs:
0‐20 mA (active)/4‐20 mA (active/passive)
Pulse/frequency/switch output (passive)
Relay

2 modular inputs:
Status
0‐20 mA (active)/4‐20 mA (active/passive)

HART, PROFIBUS PA/DP, FOUNDATION Fieldbus, Modbus RS485, EtherNet/IP

DC 16 to 62 V
AC 85 to 260 V (45 to 65 Hz)
AC 20 to 55 V (45 to 65 Hz)

ATEX, IECEx, FM, CSA, NEPSI

CE, C-tick, EAC marking

Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR

PED, CRN

3.1 material

3-A, EHEDG

Coriolis

Balanced singe-tube system, "Fit-and-Forget" installation, viscosity measurement
Design:
Easy to clean, hygienic, careful handling of the medium

DN 8...80
5/16"...3"

0...180'000 kg/h
0... 20'000 cP (viscosity)

-50...+150°C
(-58...+302°F)

PN 16...100
CI 150...600
JIS 10...63K

Mass flow: +-0.1%
Volume flow: +-0.5%
Viscosity: ± 5% ± 0.5 mPa•s (Newtonian fluids)
Density: +- 0.004g/cc

Four line backlit
Touch control

Status
Current input

0/4...20mA
Pulse Frequency (10KHz), active/passive
Relays/Status

HART
PROFIBUS PA
Profibus DP
FOUNDATION Fieldbus

ATEX
FM
CSA

IP 67
NEMA 4x

S-DAT, T-DAT, F-Chip
Validation
Quick Set-up
3 Totalizers
Pulsating Flow
Advanced diagnostics
Batching
Concentration measurement

Balanced single-tube system.
Dual mode for independent viscosity measurement.
High vibration immunity.
Easy and cost-effective mounting.
Measurement is independent of fluid properties.
Promass 83 with "Touch Control": Operation from outside without opening the house.
Software pagackes may be updated for:
- Dosage applications
- Concentration measurement
- Advanced diagnostics
"Quick Setup" menus for straightforward commissioning in the field.
