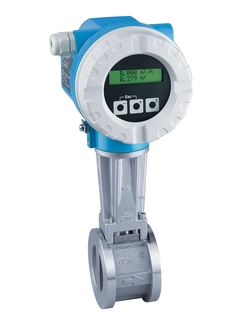

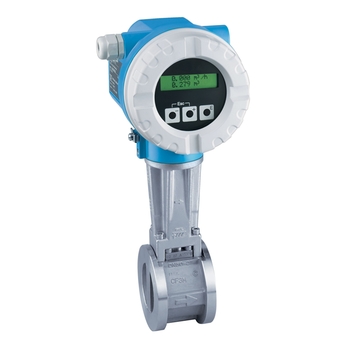

Cost-effective wafer design, available as compact or remote device version. For all basic applications and for 1-to-1 replacement of orifice plates.
FLEX 선택 |
기술적 우수성 |
단순성 |
Fundamental 선택
기본적인 측정 요구사항 충족
|
기술적 우수성
|
단순성
|
|
기술적 우수성
|
단순성
|
Extended 선택
혁신적인 기술로 프로세스 최적화
|
기술적 우수성
|
단순성
|
Xpert 선택
가장 까다로운 어플리케이션 요구사항 충족
|
기술적 우수성
|
단순성
|
-
Product headline
Space saving volume flow meter for measurement of standard liquid / gas / steam applications
Flow, temperature probe and flow computer in one device
-
-
Max. measurement error
+/-0.75% vol. fl.typically +/- 1% mass fl.
-
-
Max. process pressure
PN10...40
CL 150...300
JIS 10...20K
-
Medium temperature range
-200...+400°C
(-330 to +750°F)
up to +450°C / 842°F on request
-
-
Display/Operation
Two line liquid
crystal display
Push buttons
Quick Setup
-
Outputs
4...20mA
Pulse
Frequency
Status
PFM
-
Inputs
pressure input using PROFIBUS PA, HART
or FOUNDATION Fieldbus
-
Digital communication
HART
PROFIBUS PA
FOUNDATION Fieldbus
-
Hazardous area approvals
ATEX
FM
CSA
TIIS
NEPSI/IEC on request
-
Product headline
Space saving volume flow meter for measurement of standard liquid / gas / steam applications
Flow, temperature probe and flow computer in one device
-
-
-
-
Max. process pressure
PN10...40
CL 150...300
JIS 10...20K
-
Medium temperature range
-200...+400°C
(-328...+752°F)
up to +450°C / +842°F on request
-
-
Display/Operation
Two line liquid
crystal display
Push buttons
Quick Setup
-
Outputs
4...20mA
Pulse
Frequency
Status
PFM
-
Inputs
pressure input using PROFIBUS PA
or FOUNDATION Fieldbus
-
Digital communication
HART
PROFIBUS PA
FOUNDATION Fieldbus
-
Hazardous area approvals
ATEX
FM
CSA
TIIS
NEPSI/IEC on request
-
Product headline
Space saving volume flow meter for measurement of standard liquid / gas / steam applications
Flow, temperature probe and flow computer in one device
-
-
Max. measurement error
Volume flow: +/-1.0%
Mass flow: +/-1.7%-2.3% (saturated steam)
-
-
Max. process pressure
PN10...40
CL 150...300
JIS 10...20K
-
Medium temperature range
-200...+400°C
(-328...+752°F)
up to +450°C / 842°F on request
-
-
Display/Operation
Two line liquid
crystal display
Push buttons
Quick Setup
-
Outputs
4...20mA
Pulse
Frequency
Status
PFM
-
Inputs
pressure input using PROFIBUS PA
or FOUNDATION Fieldbus for superheated steam
temperature input using HART for delta heat
-
Digital communication
HART
PROFIBUS PA
FOUNDATION Fieldbus
-
Hazardous area approvals
ATEX
FM
CSA
TIIS
NEPSI/IEC on request
105 설명서
-
Vortex Flow Measuring System for reliable Flow Measurement of Gas, Steam
and Liquids.
Prowirl 73
Technical Information
|
EN
|
KO
|
|
01/03/2005
|
|
|
|
01/12/2003
|
|
|
|
언어:
|
영어
|
버전:
|
01/03/2005
|
파일 크기:
|
2.5 MB
|
파일 이름:
|
TI064DEN.pdf
|
-
Proline Prowirl 72F, 72W, 73F, 73W
Technical Information
Vortex Flow Measuring System
|
EN
|
KO
|
|
01/11/2011
|
|
|
|
01/01/2011
|
|
|
|
01/02/2009
|
|
|
|
01/01/2007
|
|
|
|
01/12/2005
|
|
|
|
언어:
|
영어
|
버전:
|
01/11/2011
|
파일 크기:
|
1.5 MB
|
파일 이름:
|
TI00070DEN_1411.pdf
|
-
Proline Prowirl 73
HART
Operating Instructions
Vortex Flow Measuring System
|
EN
|
KO
|
|
09/11/2011
|
|
|
|
01/01/2011
|
|
|
|
01/08/2009
|
|
|
|
01/01/2007
|
|
|
|
01/03/2005
|
|
|
|
언어:
|
영어
|
버전:
|
09/11/2011
|
파일 크기:
|
2.5 MB
|
파일 이름:
|
BA00094DEN_1411.pdf
|
-
Proline Prowirl 72
HART
Operating Instructions, Description of Device Functions
Vortex Flow Measuring System
|
EN
|
KO
|
|
01/11/2011
|
|
|
|
01/01/2011
|
|
|
|
01/02/2009
|
|
|
|
01/01/2007
|
|
|
|
01/12/2005
|
|
|
|
언어:
|
영어
|
버전:
|
01/11/2011
|
파일 크기:
|
2.1 MB
|
파일 이름:
|
BA00084DEN_1411.pdf
|
-
Proline Prowirl 73
FOUNDATION Fieldbus
Operating Instructions
Vortex Flow Measuring System with FOUNDATION Fieldbus interface
for measuring gas, steam and liquids.
|
EN
|
KO
|
|
09/11/2011
|
|
|
|
01/04/2007
|
|
|
|
01/06/2004
|
|
|
|
언어:
|
영어
|
버전:
|
09/11/2011
|
파일 크기:
|
2.5 MB
|
파일 이름:
|
BA00096DEN_1311.pdf
|
-
Proline Prowirl 73
PROFIBUS-PA
Operating Instructions
Vortex Flow Measuring System with PROFIBUS-PA interface for
measuring gas, steam and liquids.
|
EN
|
KO
|
|
09/11/2011
|
|
|
|
02/04/2007
|
|
|
|
01/03/2004
|
|
|
|
언어:
|
영어
|
버전:
|
09/11/2011
|
파일 크기:
|
2.6 MB
|
파일 이름:
|
BA00093DEN_1311.pdf
|
-
Proline Prowirl 73
Brief Operating Instructions
Vortex Flow Measuring System
|
EN
|
KO
|
|
10/11/2011
|
|
|
|
01/01/2011
|
|
|
|
01/08/2009
|
|
|
|
01/12/2007
|
|
|
|
언어:
|
영어
|
버전:
|
10/11/2011
|
파일 크기:
|
955.2 KB
|
파일 이름:
|
KA00031DEN_1411.pdf
|
-
EA Replacing cover and O-ring
Proline 10, 23, 50, 51, 53, 55, 400, 800, 40, 80, 83, 84, 8ME, 8FF, 8FE
,8CM, 90, 91, 92, 93, 65, 72, 73
|
EN
|
KO
|
|
15/10/2024
|
|
|
|
01/10/2018
|
|
|
|
28/06/2012
|
|
|
|
언어:
|
영어
|
버전:
|
15/10/2024
|
파일 크기:
|
797.3 KB
|
파일 이름:
|
EA00098DA2_1624-00.pdf
|
-
EA Conversion Kit for Prowirl 200 Compact Version to Prowirl 200 Remote
Version
Prowirl 200 non explosion-protected
|
EN
|
KO
|
|
16/10/2023
|
|
|
|
01/02/2022
|
|
|
|
03/03/2020
|
|
|
|
01/05/2017
|
|
|
|
23/04/2015
|
|
|
|
언어:
|
영어
|
버전:
|
16/10/2023
|
파일 크기:
|
1.4 MB
|
파일 이름:
|
EA01055DA2_0623-00.pdf
|
-
Safety Instructions for Spare Parts
Installation Instructions
Flowmeter
|
EN
|
KO
|
|
01/03/2018
|
|
|
|
28/11/2013
|
|
|
|
25/04/2013
|
|
|
|
언어:
|
영어
|
버전:
|
01/03/2018
|
파일 크기:
|
139.5 KB
|
파일 이름:
|
EA01051DA2_0318.pdf
|
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Kit meas. amplifier PW 73 HART Ex
-
Kit meas.amplifier PW73, PA/FF Ex
-
Kit I/O-board PW 72/73 HART Exi
-
Kit I/O-board PW 72/73 HART/pulse Exi
-
Kit I/O-board PW72/73 PROFIBUS PA Exi
-
Kit I/O-board PW72/73 FF Exi
-
Kit I/O-board PW 72/73 HART Exd
-
Kit I/O-board PW 72/73 HART/pulse Exd
-
Kit I/O-board PW72/73 PROFIBUS PA Exd
-
Kit I/O-board PW72/73 FF Exd
-
Kit conn.board PW72/73, PA/FF Exd
-
Kit display 72/73/92F(HART) 12 languages
-
Kit display 72/73, HART, 15languages
-
Kit display72/73/92F(FF/PA) 12 languages
-
Kit display 72/73, FF/PA, 15languages
-
Kit preamplifier PW 72/73
-
Kit connec. board PW72/73 FS elect Ex
-
Kit connec. board PW72/73 FS sens Ex
-
Kit Terminal Block 72/73/92F
-
Kit cover 72/73/92F with window
-
Kit cover 23/72/73/92F blind version
-
Kit cover 23/72/73/92F blind version
-
Kit cover connection compart. Exd
-
Kit cover PW72/73 FS sens
-
Kit 10 cable glands M20x1,5 grey
-
Kit 10 cable glands M20x1,5 grey
-
Kit 10 cable glands M20x1,5 grey
-
Kit 10 cable glands M20x1.5 Ex
-
Kit 10 cable glands M20x1.5 Ex
-
Kit 10 cable glands M20x1.5 Ex
-
Kit 1cable gl.M20x1.5 armored,Transm.
-
Kit 1 cable gl. M20x1.5 armoured, Sensor
-
Kit 10 ext. M20x1.5/NPT 1/2" (plug PVC)
-
Kit 10 ext. M20x1.5/NPT 1/2" (plug PVC)
-
Kit 10 ext. M20x1.5/NPT 1/2" (plug PVC)
-
Kit 10 ext. M20x1.5/G 1/2" (plug PVC)
-
Kit 10 ext. M20x1.5/G 1/2" (plug PVC)
-
Kit Cable gland Profibus PA
-
Kit Cable gland Profibus PA
-
Kit Cable gland Found. Fieldbus
-
Kit Cable gland Found. Fieldbus
-
Kit Ground terminal/Cover clamp
-
Kit Circuit board 72/73 field housing
-
Kit Display carrier 72/73/92F field hous
-
Kit gaskets housing PW72/73 compact
-
Kit gaskets housing PW72/73 FS
-
Kit cable PW72/73 remote version 10m
-
Kit cable PW72/73 remote 10m Ex
-
Kit cable PW72/73 remote version 30m
-
Kit cable PW72/73 remote 30m Ex
-
Kit cable PW72/73 FS armored, 10m Ex
-
Kit cable PW72/73 FS armored, 15m Ex
-
Kit cable PW72/73 FS armored, 20m Ex
-
Kit cable PW72/73 FS armored, 30m Ex
-
Kit 2 Centering rings DN 15 DIN PN 40
-
Kit 2 Centering rings DN 15 ANSI150LBS
-
Kit 2 Centering rings DN 15 ANSI300LBS
-
Kit 2 Centering rings DN 15 JIS 10/20K
-
Kit 2 Centering rings DN 25 DIN PN 40
-
Kit 2 Centering rings DN 25 ANSI150LBS
-
Kit 2 Centering rings DN 25 ANSI300LBS
-
Kit 2 Centering rings DN 25 JIS 10/20K
-
Kit 2 Centering rings DN 40 DIN PN 40
-
Kit 2 Centering rings DN 40 ANSI150LBS
-
Kit 2 Centering rings DN 40 ANSI300LBS
-
Kit 2 Centering rings DN 40 JIS 10/20K
-
Kit 2 Centering rings DN 50 DIN PN 40
-
Kit 2 Centering rings DN 50 ANSI150LBS
-
Kit 2 Centering rings DN 50 ANSI300LBS
-
Kit 2 Centering rings DN 50 JIS 10/20K
-
Kit 2 Centering rings DN 80 DIN PN 40
-
Kit 2 Centering rings DN 80 ANSI150LBS
-
Kit 2 Centering rings DN 80 ANSI300LBS
-
Kit 2 Centering rings DN 80 JIS 10K
-
Kit 2 Centering rings DN 80 JIS 20K
-
Kit 2 Centering rings DN100 DIN PN 16
-
Kit 2 Centering rings DN100 DIN PN 40
-
Kit 2 Centering rings DN100 ANSI150LBS
-
Kit 2 Centering rings DN100 ANSI300LBS
-
Kit 2 Centering rings DN100 JIS 10K
-
Kit 2 Centering rings DN100 JIS 20K
-
Kit 2 Centering rings DN150 DIN PN 16
-
Kit 2 Centering rings DN150 DIN PN 40
-
Kit 2 Centering rings DN150 ANSI150LBS
-
Kit 2 Centering rings DN150 ANSI300LBS
-
Kit 2 Centering rings DN150 JIS 10K
-
Kit 2 Centering rings DN150 JIS 20K
-
