사양 정보
-
Measured variables
Visibility (K-value)
-
Measuring range
K-value: 0 ... 150 km⁻¹ / 0 ... 2,000 km⁻¹
Temperature: -50 ... +250 °C
Limit value for smoke detection: 15/km -
Ambient temperature range
–30 °C ... +55 °C
적용 분야

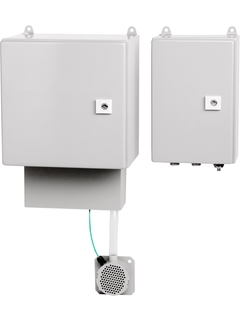

Fast and reliable detection of smoke in tunnels delivers information which helps to save human lives and avoid material damage. The SMOTEC450 detects smoke particles in tunnels within seconds and alerts the control system immediately – long before visibility is reduced too much by dense smoke. The automatic check cycle of the SMOTEC450 checks all important components of the system each day without the tunnel having to be closed and without incurring personnel costs.
Device properties:
Very fast and accurate scattered light measurement
Automatic control functionalities
Contamination check
Heated chamber for evaporization of fog droplets
Rugged enclosure made of stainless steel
장점
Early and reliable warning for optimum efficiency during self-rescue phase
Automatic check cycle without the tunnel having to be closed and without incurring personnel costs
| FLEX 선택 | 기술적 우수성 | 단순성 |
|---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
