산소 분석기 OXY5500은 QF(Quenched Fluorescence) 기술을 이용해 천연가스 및 가스 프로세싱 애플리케이션에서 산소를 측정하는 컴팩트한 독립형 단일 채널 분석기입니다. 이 분석기는 센서 프로브를 프로세스 스트림에 삽입해 산소를 측정하고 광섬유를 통해 컨트롤러에 연결됩니다. OXY5500은 LCD 디스플레이와 내장 데이터 로거가 있어 완전한 샘플 컨디셔닝 시스템을 구축할 수 있고 PC 인터페이스를 위한 소프트웨어도 제공합니다.
천연가스의 생산, 저장, 운송 및 분배 과정에서 품질 측정
천연가스, 생산의 업스트림 및 집하 장소의 모니터링
ppm 수준에서 0-20%까지의 O2 측정 범위
전해조 애플리케이션을 위한 수소 내 산소 농도를 0~10ppm으로 낮춘 미량 측정
광학 산소 측정은 공정에서 CO2 또는 H2S의 영향을 받지 않으므로 CCUS 어플리케이션에 이상적입니다.
Check out the findings from the GERG report on the use of a Raman Rxn4 analyzer and Raman Rxn-41 cryogenic probe for the reliable chemical composition measurement in LNG custody transfer applications.

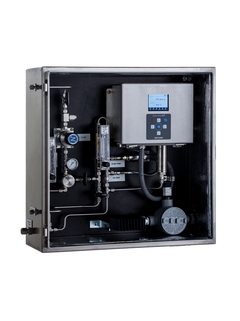

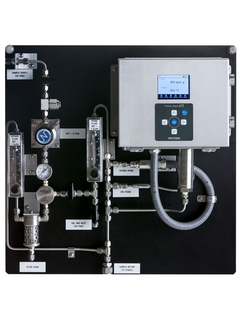

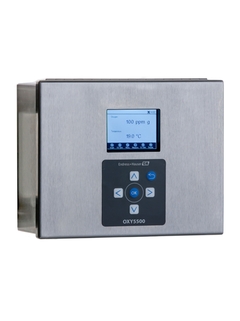

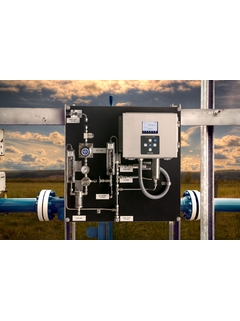

Compact, single channel oxygen (O2) analyzer with an LCD display and built-in data logger. The sensor measures oxygen using quenched fluorescence (QF) technology, which is inserted into the process stream and is connected to the controller by an optical fiber.
Channels
1
Analyte and Measurement ranges
O2 (Oxygen): 0 to 100 ppmv (minimum) 0 to 20% volume (maximum)
Measured Variables
Concentration Cell Pressure Cell Temperature
Ambient Temperature range
-20 to 50°C (-4 to 122°F)
Operating Pressure range
Inlet Pressure: 140 to 275 kPa (20 to 40 psig) Sample Cell: 800 to 1200 mbara
Analyzer Wetted materials
304 & 316 stainless steel FKM O-Rings
Power supply
108 to 253 VAC, 50/60 Hz; 5.3 Watts at 120VAC; 6.6 Watts at 240VAC or 9 to 30 VDC (CSA), 18 to 30 VDC (IECEx/ATEX); 4.7 Watts at 24VDC
Communication
Analog Output: Two 4-20 mA outputs Analog Input: One 4-20 mA input (sample pressure) Fieldbus: RS-232C, RS-485, & Ethernet 10/100 with Modbus Output Relays: Qty 2, 250 mA max load (Concentration and Fault Alarms) USB 2.0 Works With Service Software Only 4 GB Internal Memory with Internal Data Logging
