Memosens CCS120D: Digital total chlorine sensor

Digital total chlorine sensor

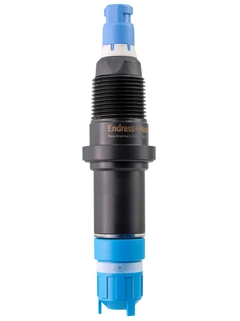

Memosens CCS120D

Memosens disinfection sensor for wastewater and process water

CCS120D

비교

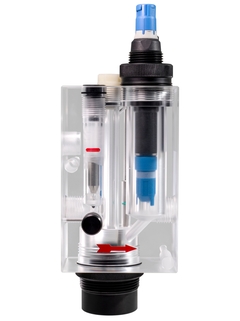

Memosens CCS120D digital total chlorine sensor installed in CCA250 flow assembly

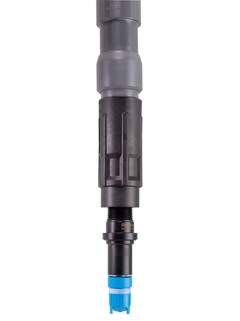

Memosens CCS120D total chlorine sensor installed in CYA112 immersion assembly

사양 정보

Measuring range

0.1 to 10 mg/l total chlorine
Process temperature

5 to 45 °C
(41 to 113 °F)
Process pressure

1 to 4 bar (14.5 to 58 psi)
Measuring method

Total chlorine consists of free chlorine (HOCl, OCl-) and bound chlorine (chloramines)
All components are reduced at the working electrode
Almost pH independent

모든 사양 보기

적용 분야

Total chlorine is the mixture of free and bound chlorine components and thus a good indicator of residual disinfectants in discharge water. The sensor Memosens CCS120D provides reliable monitoring of total chlorine limits in the outlet. It reduces your maintenance effort due to easy replacement of electrolyte and membrane cap. Memosens CCS120D is not the latest Memosens generation. More information on the new sensor Memosens CCS53E.

Memosens CCS120D measures total chlorine in:

Wastewater treatment plants- Disinfection monitoring and control in wastewater outlet- Reuse of outlet water
Utilities of all industries- All disinfection measuring points

장점

Easy handling thanks to Memosens digital technology
Enables predictive maintenance due to storage of sensor and process-specific data
Low maintenance thanks to fast exchange of membrane cap and electrolyte
Flexible installation in CYA112 immersion assembly or CCA250 flow assembly
Easy combination with other relevant parameters of liquid analysis thanks to connection to the Liquiline multichannel transmitter

동영상

Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.
