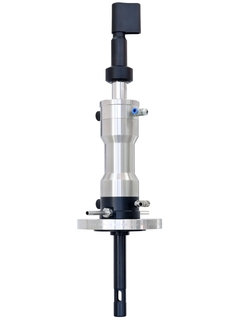

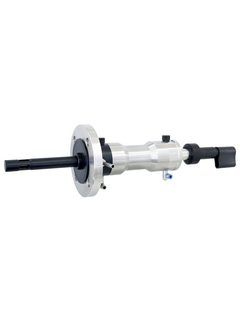

The Cleanfit CPA472D assembly is designed for harsh process conditions. It offers a great variety of rugged materials to operate your sensors safely even under high pressure, high temperature or in aggressive media. The assembly allows you to replace sensors without interrupting the process or to clean and calibrate them automatically via the optional control system. Benefit from easy, time-saving sensor handling and an extended operating life of the sensors.
The Cleanfit CPA472D is intended for installation in tanks or pipes in:
Chemical industry
Power plants
Biodiesel plants
It is suitable for use with pressures of up to 10 bar.
장점
Extremely robust: Suitable for use with pressures of up to 10 bar and temperatures of up to 140° C even as PEEK, PVDF, conductive PVDF versions
Maximum chemical resistance ensures long operating times
No process interruption for electrode cleaning and calibration – saves maintenance time and costs
Flexible adaptation to all applications by great variety of materials and process connections
Efficient component cleaning is an important part of the production of industrially manufactured components. Borer Chemie AG therefore relies on the concentration measurement with Teqwave F, I and T.
The measurement of interface in thickeners is done manually, while the turbidity measurement is done by obtaining samples sent to the laboratory. With Endress+Hauser there is an automated solution.
The safety and operating comfort of an analytical measuring point starts with using the right assembly. Our flexible assembly production ensures that you get the right assembly for your needs.
Chemical industry, biodiesel plants, power plants, plant design, tanks, process vats or pipes
Installation
Retractable holder
Characteristic
For tanks and process vats and pipelines or pipes (min. DN80) The robust retractable assembly permits replacement of the electrode while the tank is full or under process conditions with pressures of up to 6 bar
Immersion depth: 146 or 280 mm (5.75 or 7.87 inch)
Process temperature
0 to 140 °C (32 to 284 °F)
Process pressure
0 to max. 4 bar (0 to max. 58 psi) overpressure for manual actuation 0 to 10 bar (0 to 145 psi) overpressure for pneumatic actuation
Connection
Process connections: Flange DN 50, DN 80, ANSI 2", JIS IS10K50A, internal thread G1¼
측정 원리
Sensor ORP / Redox
Application
Chemical industry, biodiesel plants, power plants, plant design, tanks, process vats or pipes
Installation
Retractable holder
Characteristic
For tanks and process vats and pipelines or pipes (min. DN80) The robust retractable assembly permits replacement of the electrode while the tank is full or under process conditions with pressures of up to 6 bar
