0.25 to 600 mg TOC/l 1 to 2400 mg TOC/l 2.5 to 6000 mg TOC/l 5 to 12000 mg TOC/l With the optional pre-dilution the measuring range will expand by the factor of 20
CA72TOC는 다양한 산업 분야에서 총 유기 탄소(TOC) 함량을 측정합니다. 염분, 지방 또는 섬유의 부하가 높은 혹독한 어플리케이션에서도 정확하고 신뢰할 수 있는 측정을 보장합니다. 또한 생산물 손실을 정확하게 검출해 프로세스 수율이 증가하고 비용을 절약할 수 있습니다. CA72TOC는 뛰어난 장기 안정성과 가용성으로 플랜트의 운영 안전성을 극대화하며, 명확한 진단 메시지로 예측 유지보수 전략을 지원합니다.
AVR Waste in Botlek, Rotterdam, processes up to 1.7 million tons of residual waste per year. Discover how they optimized their pH measurement thanks to Endress+Hauser
Discover how Heineken meets all regulations to protect the brazilian environment with the Viomax CAS51D digital nitrate or SAC sensor from Endress+Hauser.

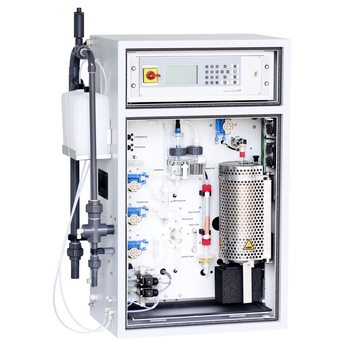

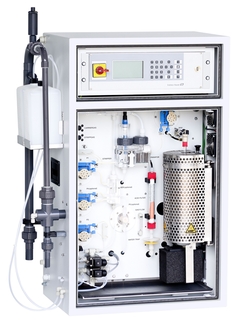

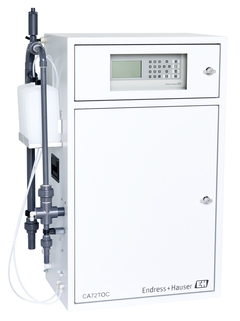

Analyzer for online-determination of TOC in aqueous media using thermic catalytic combustion
Size
1558 x 785 x 400 mm 61.3 x 30.9 x 15.8 inch
Design
IP54
Process temperature
0 to 40 °C (32 to 104 °F)
Ambient temperature
5 to 35 °C (41 to 95 °F)
Process pressure
Pressure free
Sample flow rate
20 ml/min (0.32 US gal/hr)
Consistency of the sample
Aqueous Flammable substances are not allowed in ignitable concentrations, in such cases a sample dilution is required
Specials
Heatable Salt Trap Exchange furnace concept pH-controlled acid dosage with TIC stripping
Application
Industrial wastewater monitoring Control of process wastewater Monitoring of industrial surface water Recording of the carbon load to control the nutrient dosage
Power supply
115 VAC, 230 VAC, 50/60Hz
Output / communication
0/4 to 20 mA, galvanically separated Two channel version has an addtional one RS 232 C, propietary, for data output and remote control (optional)
Input
8 signal inputs 24 V DC, ative, load max. 500 Ohm
Measuring range
0.25 to 600 mg TOC/l 1 to 2400 mg TOC/l 2.5 to 6000 mg TOC/l 5 to 12000 mg TOC/l With the optional pre-dilution the measuring range will expand by the factor of 20
