사양 정보
-
Accuracy
class A acc. to IEC 60751
class B acc. to IEC 60751 -
Max. process pressure (static)
at 20 °C: 1 bar (15 psi)
-
Operating temperature range
PT 100:
-50 °C ...150 °C
(-58 °F ...302 °F)
적용 분야

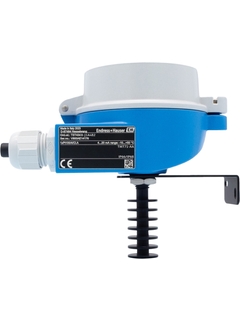

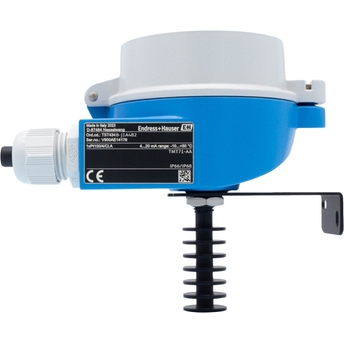

The iTHERM ModuLine TST434B RTD thermometer is specially designed for monitoring the room temperature in almost all industries.
It is available as a complete unit including Endress+Hauser temperature transmitters for enhanced measurement accuracy and reliability compared to directly wired sensors. With a variety of common and advanced outputs and communication protocols, they offer easy customizing.
Outdoor or indoor ambient temperature measurement
Maximum measuring range: –50 to +150 °C (–58 to +302 °F)
Degree of protection: IP66/68 (NEMA Type 4x encl.)
장점
Robust terminal heads according to DIN EN 50446 or stable plastic housings offer optimal protection from extreme ambient conditions
Reliable, long term stable and accurate indoor or outdoor ambient temperature measurement
Simple and fast wall mounting
Optional head transmitters: Analog 4 to 20 mA, HART®, PROFIBUS® PA, FOUNDATION Fieldbus™, IO-Link, PROFINET® over Ethernet-APL/SPE
| FLEX 선택 | 기술적 우수성 | 단순성 |
|---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
Loading alternative products
기존 제품
성공 사례
4 설명서
-
-
기술 정보(TI)
TI iTHERM ModuLine TST434B
Modular resistance thermometer for outdoor or indoor ambient temperature
measurementEN KO 07/08/202430/11/202320/11/201816/01/2014언어:
영어
버전:
07/08/2024
파일 크기:
773.6 KB
파일 이름:
TI01140TEN_0424-00.pdf
-
-
-
혁신(IN)
eBrochure iTHERM ModuLine TST434B
eBrochure iTHERM ModuLine TST434B
Our answer to ambient temperature measurement언어:
영어
버전:
10/07/2024
파일 크기:
5 MB
파일 이름:
IN01332T_09 iTHERM ModuLine TST434B.pdf
-
-
-
EU 선언
Product family: Low cost RTD general purpose, Process RTD direct contact, Process RTD direct in contact, Process RTD general purpose , Process RTD heavy duty, Process RTD hygienic, Process TC direct contact, Process TC direct in contact, Process TC general purpose, Process TC heavy duty, RTD thermometer, TC heavy duty
Product root: TAF11-, TAF12D-, TAF12S-, TAF12T-, TAF16-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC42
0-, TH11-, TH12-, TH13-, TH14-, TH15-, TH17-, TH18-, TH27-, TH51-, TH52-, TH53-, TH54-, TH55-, TH56-, TM101-, TM111-, TM112-, TM121-
, TM131-, TM151-, TM152-, TM401-, TM402-, TM411-, TM412-, TMT142C-, TMT142R-, TMT162C-, TMT162R-, TR10-, TR11-, TR12-, TR13-, TR15-,
TR24-, TR25-, TR44-, TR45-, TR46-, TR47-, TR48-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TSM187-, TSM487-, TST187-, TST3
10-, TST40N-, TST410-, TST414-, TST41N-, TST434-, TST434B-, TST487-, TST602-, TST90-
Declaration number: EC_00136_04.24EN KO 20/02/2024언어:
영어
버전:
20/02/2024
파일 크기:
150.6 KB
파일 이름:
EC_00136_04.24.pdf
-
-
-
계측
Product family: Process RTD direct contact, Process RTD general purpose, Process RTD heavy duty, Process RTD hygienic
Product root: TM151-, TM411-, TR15-, TR65-, TR66-, TST310-, TST434-, TST434B-, TST90-
Region: Kazakhstan
Approval agency: KazInMetr
Approval number: 2813
Metrology type: Metrology언어:
러시아어
버전:
26/08/2024
파일 크기:
3.3 MB
파일 이름:
2813 iTHERM 26.08.2024 to 26.08.2029.pdf
-
도면 내 번호별 예비 부품 검색
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Adapter M20x1.5 exter./M24x1.5 intern.VA
-
further parts
주문 코드51004915 -
-
Cable gland NPT1/2, D4.5-8.5 IP68
-
further parts
주문 코드51006845 -
-
Cable gland M16x1,5 IP68 4-8 PA grey
-
further parts
주문 코드71030129 -
-
Spare parts kit sealing TA30A/TA30D
-
further parts
주문 코드71182602 -
-
Spare parts kit ring D21/di 10xgreen
-
further parts
주문 코드71367427 -
-
Fixing kit cpl. TMT8x/7x USA(american)
-
further parts
주문 코드71044062 -
-
Terminal Head TA30A
-
further parts
주문 코드TA30A- -
-
Commubox FXA195
-
further parts
주문 코드FXA195- -
-
FieldCare SFE500
-
further parts
주문 코드SFE500- -
-
Configuration Kit TXU10
-
further parts
주문 코드TXU10- -
-
iTEMP TMT31, Transmitter 4-20mA
-
further parts
주문 코드TMT31- -
-
iTEMP TMT36, Transmitter IO-Link
-
further parts
주문 코드TMT36- -
-
iTEMP TMT71, Transmitter 4-20mA
-
further parts
주문 코드TMT71- -
-
iTEMP TMT72, Transmitter HART
-
further parts
주문 코드TMT72- -
-
iTEMP TMT84, Transmitter PA
-
further parts
주문 코드TMT84- -
-
iTEMP TMT85, Transmitter FF
-
further parts
주문 코드TMT85- -
-
iTEMP TMT86, Ethernet Transmitter
-
further parts
주문 코드TMT86- -
-
Cable gland M20x1,5 IP68 PA grey
-
further parts
주문 코드60020298 -
-
iTEMP TMT82, Transmitter HART
-
further parts
주문 코드TMT82- -
-
Plug for Thermometer + Transmitter
주문 코드XPT0002- -
Spare IEC TAG
주문 코드XPSPEC- -
Service
주문 코드DIENST-
