Advanced data and energy manager with up to 20 analog/HART® inputs and 14 digital inputs
FLEX 선택 |
기술적 우수성 |
단순성 |
Fundamental 선택
기본적인 측정 요구사항 충족
|
기술적 우수성
|
단순성
|
|
기술적 우수성
|
단순성
|
Extended 선택
혁신적인 기술로 프로세스 최적화
|
기술적 우수성
|
단순성
|
Xpert 선택
가장 까다로운 어플리케이션 요구사항 충족
|
기술적 우수성
|
단순성
|
-
Measuring principle

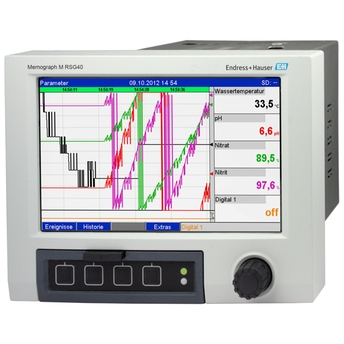

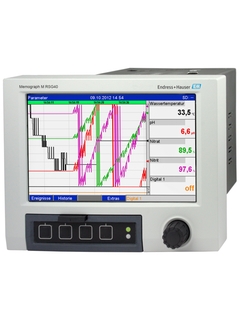

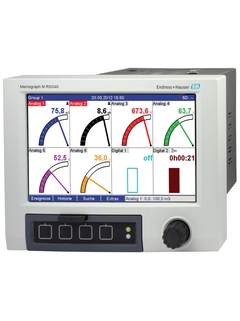

Advanced Graphic Data Manager
-
Function
The versatile solution with secure data recording, visualization and application-specific software packages.
-
Input
20 analog (max) (U, I, TC, RTD, frequency, pulse)
14 digital (max) (control, event and counting inputs)
-
Output
12 relays (max)
2 analog output (max) (I, pulse)
1 loop power supply
-
Interface
RS232/485
Ethernet
USB
Modbus RTU/TCP Slave
Modbus RTU Master
PROFIBUS DP
-
Storage/Recording
internal memory

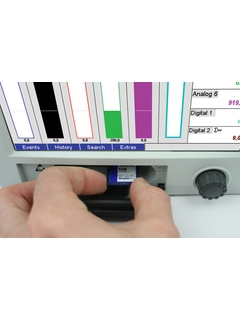

SD card
USB flash drive
-
Display
TFT 7" colour graphic display
-
Housing
panel mounting
desktop housing
field housing
-
Certificates
21 CFR Part 11
Milk pasteurisation approval
UL recognized
CSA
-
Software package
Batch software
Waster water software
Tele-alarm software
Gas-steam-heat calculation
Energy software (water + steam)
Waste water + storm overflow + Tele Alarm
Tele-alarm software + energy software (water + steam)
-
-
Function
Mass flow and energy calculation for Water and Steam.
-
-
-
-
-
-
-
-
-
Input
4...20 universal
6…14 digital
-
-
Dimensions (WxHxD)
195.2 x 149.2 x 227.1 mm (7.69" x 5.87" x 8.94")
-
Operation
Jog shuttle on site and PC software ReadWin
-
-
Software functions
Internal calculation for mass flow and energy
-
-
Function
Mass flow and energy calculation for Water and Steam.
-
-
Input
4...20 universal, 6…14 digital
-
-
-
-
Dimensions (wxhxd)
195.2 x 149.2 x 227.1 mm
(7.69" x 5.87" x 8.94")
-
Software
Internal calculation for mass flow and energy
-
Operation
Jog shuttle on site and PC software ReadWin
-
-
-
Functions
Signal analysis
Interface / modem
OPC-Server
ReadWin 2000
Mathematic formula editor
energy package, water+steam
-
Maximal input
20 analog (U, I, TC, RTD, Frequency, Pulse)
14 digital (control, event and counting inputs)
-
Maximal output
12 Relay
2 Analog output (I, Pulse)
1 Power loop supply
-
Interface
RS 232
RS 485
Ethernet
Modbus RTU
Modbus TCP
PROFIBUS DP
USB
-
Storage/Recording
Internal memory
SD card
USB Stick
-
Display
TFT 7" colour graphic display
-
Housing
panel mounting
desktop housing
Field housing
-
Power supply
100...230 V AC +/-10%
24V (-10%; +15%) AC/DC
-
Certification
21 CFR 11
Milk pasteurisation approval
UL recognized
CSA GP
-
Software package
Batch programme
Waster water software
Tele-Alarm software
Gas-Steam-Heat calculation
Energy package + Water + Steam
Waste water + Storm overflow + Tele Alarm
Tele-Alarm software + Energy package + Water + Steam
최다 다운로드
-
Supplementary Description
Graphic Data Manager, Memograph M, RSG40
Modbus RTU Master
Connection to Modbus via Modbus RTU Master RS485
언어:
|
영어
|
버전:
|
25/01/2011
|
파일 크기:
|
553.9 KB
|
파일 이름:
|
BA00301Ra2_0111.pdf
|
-
FDM Field Data Manager Software MS20, MS21
Data management and visualization
|
EN
|
KO
|
|
04/10/2021
|
|
|
|
27/07/2021
|
|
|
|
09/05/2019
|
|
|
|
16/05/2017
|
|
|
|
24/03/2016
|
|
|
|
언어:
|
영어
|
버전:
|
04/10/2021
|
파일 크기:
|
5.9 MB
|
파일 이름:
|
BA00288R09EN_1221.pdf
|
29 설명서
-
Technical Information
Memograph M
Memograph M
Graphic Data Manager RSG40
Record, visualize, analyze and communicate.
|
EN
|
KO
|
|
24/06/2014
|
|
|
|
09/03/2011
|
|
|
|
19/05/2010
|
|
|
|
14/12/2009
|
|
|
|
08/01/2009
|
|
|
|
언어:
|
영어
|
버전:
|
24/06/2014
|
파일 크기:
|
1.2 MB
|
파일 이름:
|
TI00133R09EN_0214.pdf
|
-
Graphic Data Manager, RSG40
Memograph M, Profibus DP Slave
|
EN
|
KO
|
|
24/09/2015
|
|
|
|
28/02/2011
|
|
|
|
16/06/2009
|
|
|
|
19/12/2008
|
|
|
|
21/07/2008
|
|
|
|
언어:
|
영어
|
버전:
|
24/09/2015
|
파일 크기:
|
1.9 MB
|
파일 이름:
|
BA00256Rc3_0215.pdf
|
-
Supplementary Description
Graphic Data Manager, Memograph M, RSG40
Modbus RTU Master
Connection to Modbus via Modbus RTU Master RS485
언어:
|
영어
|
버전:
|
25/01/2011
|
파일 크기:
|
553.9 KB
|
파일 이름:
|
BA00301Ra2_0111.pdf
|
-
Memograph, Memograph S, Memograph M, Ecograph T + RMM621
Modem-Verbindung über RS232 Kabel / Modem connection via RS232
|
EN
|
KO
|
|
26/09/2007
|
|
|
|
15/05/2007
|
|
|
|
언어:
|
영어
|
버전:
|
26/09/2007
|
파일 크기:
|
169.5 KB
|
파일 이름:
|
Ba253ra2_0907.pdf
|
-
Graphic Data Manager, RSG40
Memograph M, Batch software option.
Additional functions for automatic batch analysis.
|
EN
|
KO
|
|
08/07/2015
|
|
|
|
28/04/2011
|
|
|
|
02/12/2008
|
|
|
|
언어:
|
영어
|
버전:
|
08/07/2015
|
파일 크기:
|
566.4 KB
|
파일 이름:
|
BA00267R09a2_0215.pdf
|
-
Graphic Data Manager, OSG40
Modbus RTU / TCP Slave
|
EN
|
KO
|
|
21/07/2008
|
|
|
|
18/02/2008
|
|
|
|
언어:
|
영어
|
버전:
|
21/07/2008
|
파일 크기:
|
1.4 MB
|
파일 이름:
|
BA260Ra2_N_0708.pdf
|
-
Graphic Data Manager, RSG40
Memograph M, Überwachung von Milcherhitzeranlagen
언어:
|
독일어
|
버전:
|
28/01/2008
|
파일 크기:
|
213.9 KB
|
파일 이름:
|
BA261rde_0108.pdf
|
-
Graphic Data Manager, RSG40
Memograph M, Option Tele-Alarm.
Additional Tele-Alarm functions for alarm messages.
|
EN
|
KO
|
|
20/01/2016
|
|
|
|
31/01/2011
|
|
|
|
01/07/2009
|
|
|
|
02/12/2008
|
|
|
|
언어:
|
영어
|
버전:
|
20/01/2016
|
파일 크기:
|
1.1 MB
|
파일 이름:
|
BA00268rc3_0216.pdf
|
-
Graphic Data Manager, RSG40
Memograph M, Energy option
|
EN
|
KO
|
|
04/11/2011
|
|
|
|
24/09/2010
|
|
|
|
06/05/2010
|
|
|
|
11/08/2008
|
|
|
|
02/07/2008
|
|
|
|
언어:
|
영어
|
버전:
|
04/11/2011
|
파일 크기:
|
3.6 MB
|
파일 이름:
|
BA00266Rc4_0111.pdf
|
-
Operating manual
Memograph M
Graphic Data Manager RSG40.
Record, visualize, analyze and communicate
|
EN
|
KO
|
|
24/06/2014
|
|
|
|
30/08/2011
|
|
|
|
21/02/2011
|
|
|
|
22/06/2010
|
|
|
|
31/12/2009
|
|
|
|
언어:
|
영어
|
버전:
|
24/06/2014
|
파일 크기:
|
4.6 MB
|
파일 이름:
|
BA00247R09EN_0314.pdf
|
