클램프온 초음파 유량계

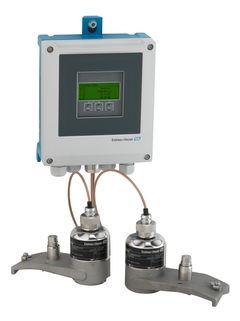

Proline Prosonic Flow W 400

Ultrasonic flow

Clamp-on meter with Heartbeat Technology and web server for the water and wastewater industry.
Short inlet run thanks to FlowDC.

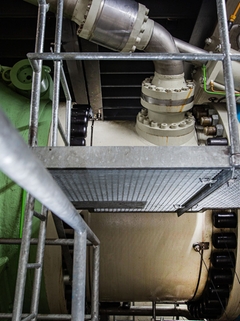

Bidirectional measurement for water and wastewater as well as process water and hydropower plants.

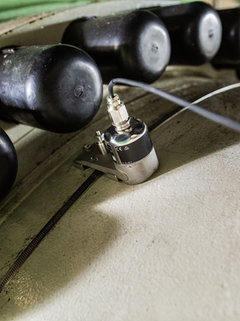

Low capital investment – cost-effectiveness increases with pipe diameter (up to DN 2000/80"). Long-term stable signal – maintenance-free permanent mounting from outside with coupling pads. Reliable measurement on various pipe materials – sensor for GRP and plastic pipes available.
Mounting without process interruption. Wide nominal diameter range: DN 15 to 4000 (½ to 160"). Medium temperature up to +130 °C (+266 °F).

Safe operation – no need to open the device due to display with touch control, background lighting. Full remote access – web server. Integrated diagnostics, verification and monitoring – Heartbeat Technology.
Transmitter housing made of durable polycarbonate or aluminium. Remote version for wall mounting. Integrated data logger: measured values monitoring.

DN15 to 4000 (1/2 to 160")

Clamp on system:
Sensor holder 1.4301 (304), 1.4404 (316L)
Sensor housing 1.4301 (304), 1.4404 (316L)
Strapping bands 1.4301 (304), 1.4404 (316L)

Volume flow, Flow velocity, Sound velocity

Volume flow:
±3% o.r. for DN15
±2% o.r. for DN25 to 200
±2% o.r. above DN200

0 to 15 m/s (0 to 50 ft/s)

N/A

–40 to +130 °C (–40 to +266 °F)

Sensor DN 15 to 65: -40 to 130°C
Sensor DN 50 to 4000: -40 to 130°C

N/A

Wall-mounted housing
Polycarbonat; AlSi10Mg, coated

Transmitter: IP66/67, Type 4X enclosure
Sensor: IP66/67, Type 4X enclosure, IP68, Type 6P enclosure (optional)

4‐line backlit display with touch control (operation from outside)
Configuration via local display, web browser and operating tools possible

3 ouputs:
4‐20 mA/4‐20 mA HART (active)
Pulse/frequency/switch output (passive)
Pulse/frequency/switch output (passive)
Modbus RS485

Status input

HART

AC 100 to 240 V / AC/DC 24 V

cCSAus

Other approvals and certificates

CE, C-tick marking, EAC-marking

Flowmeter verification for all frequencies except 0.3 MHz, reference line size: 5 MHz DN 50, all other frequencies DN 100
Verification performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a

Marine approvals and certificates
