사양 정보
-
Measured variables
Volume a. c., volumetric flow a. c., gas velocity, volume s. c. (*), volume flow under s.c. (*)
(*) additional function included with integrated volume correction -
Measuring Medium
Natural gas (dry, odorized), air
-
Nominal pipe size
DN 50 (2") … DN 150 (6")
적용 분야

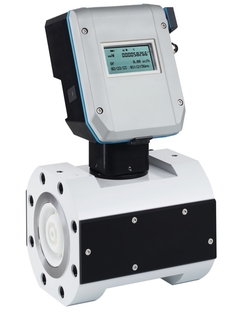

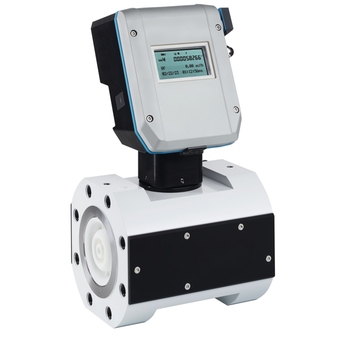

State-of-the-art technology for maximum measurement accuracy: The FLOWSIC550 ultrasonic compact gas flowmeter ensures highly accurate billing of low volume flows in high-pressure networks – a perfect complement to the FLOWSIC500. It is overload-proof, accurate and is monitored by an intelligent diagnostics system. FLOWSIC550 can be easily integrated into existing measuring stations. When used in transfer and measuring stations, FLOWSIC550 ensures a continuous and blockage-free gas supply.
Gas Measurement of low volume applications at high pressures
Custody transfer: gas distribution, storage, and transmission systems
Town border stations and city gate stations
Device properties:
Diagnostics and permanent operational self-monitoring
Durable and reliable without moving parts
Compact meter installations
Integrated volume correction
Battery or intrinsically safe power supply
Bluetooth Low Energy (BLE)
장점
Ultimate measurement certainty and safety of continuous gas supply
Simple installation, replacement of turbine gas meters
Reduction of installation costs due to integrated volume correction
Easy Commissioning and data reading via FLOWgateTM (PC and App)
Minimal operating costs due to being nearly maintenance-free
Reliable even when the gas flow fluctuates (on/off applications)
Self-sufficient operation possible
| FLEX 선택 | 기술적 우수성 | 단순성 |
|---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
Loading alternative products
-
-
사용 설명서(BA)
FLOWSIC550
Ultrasonic Gas Flow Meter
EN KO 01/01/2025언어:
영어
버전:
01/01/2025
파일 크기:
4.1 MB
파일 이름:
8029793_AE00_OI_FLOWSIC550_en_V1-1_2025-02_EHS.pdf
-
-
-
역량 브로셔(CP)
FLOWSIC – flow meters and instruments
Precise quantity measurement for accurate billing and process control
언어:
영어
버전:
18/12/2024
파일 크기:
3.1 MB
파일 이름:
8030079_CP_Flow_meters_en_V1-0_2025.01_EHS.pdf
-
-
-
혁신(IN)
FLOWSIC500 – high pressure gas flow meter for natural gas distribution
The FLOWSIC500 ultrasonic compact gas meter ensures highly accurate metering in natural gas distribution.
언어:
영어
버전:
24/03/2025
파일 크기:
3.9 MB
파일 이름:
8029942_IN_FLOWSIC550_en_V2-2_2025.01_EHS.pdf
-
-
-
애플리케이션 소프트웨어
FLOWgate
Software for configuration and parameterization of FLOWSIC ultrasonic flowmeter
언어:
Language neutral
버전:
11/11/2024
파일 크기:
430 MB
파일 이름:
FLOWgate
-
-
-
검증 DTM
IR-USB driver
USB driver for infrared optical head HIE-04
언어:
Language neutral
버전:
04/08/2017
파일 크기:
94 MB
파일 이름:
IR-USB driver
-
